DIY Triangle Display Shelf

3 mins read

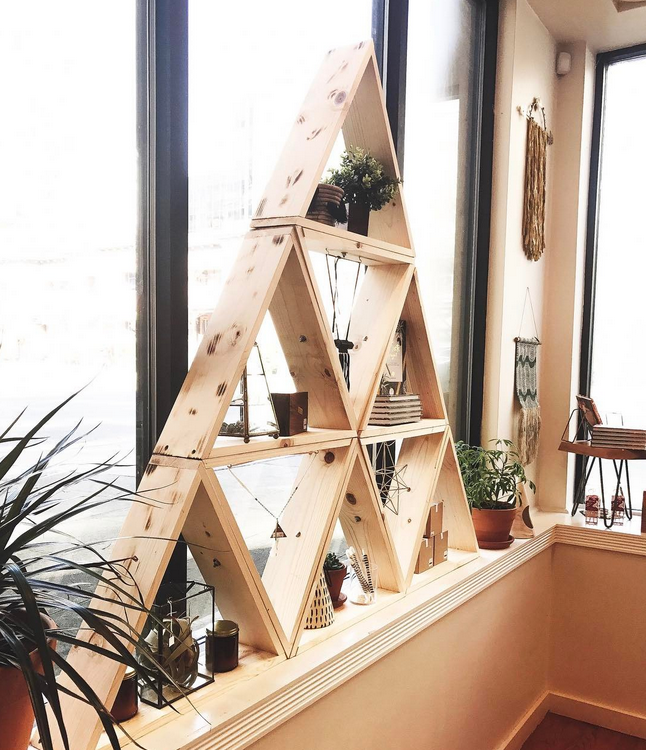

DIY Triangle Display Shelf

Earlier last month we happened upon this triangle display shelf via Instagram from Moorea Seal in Seattle and were inspired that it was handmade.  Ashley Miller(who works there) created it as a display shelf for the shop and so we asked these two ladies if they would be interested in sharing how it was made as a DIY for Poppytalk.  And we were thrilled they agreed!

The result is a stunning shelf perfect for not only retail, but at home too. Also, be sure to check out both Moorea Seal online and Ashley’s Etsy shop, Charcoal and Ash.  All equally impressive – more of their contact info below!

DIY Triangle Display Shelf

The inspiration for the Triangle Display Shelf was to create shelving that was useful and stylish that could also create height in the shallow shop widow spaces. The triangle shelf does a great job at creatively displaying store product without blocking light from the outdoors. The
removable bolts keep it safely attached they are a great feature allowing for repositioning and stacking. Once your triangle shelf is built you can customize it by painting, sanding, staining, or burning the surface for a variety of beautiful looks.

 Shopping List:
• 9, 1”x 6”x 72” pine boards (1 board per triangle I recommend buying a few extra)
• 54 (6 per triangle) 1-5/8” wood screws
• 1/4” flat washers
• 1/4” -20 hex nuts
• 1/4” -20 x 2 carriage bolts
Instructions:
1. First cut at the end a 33 1/3 degree angle
2. Then turn the board over, slide it down to 21”
3. On the long side cut 33 1/3 degree angle again
4. Repeat until board is cut into 3 pieces, cut all boards
5. Fit pieces together (see image below)

diy triangle shelf

6. Screw in 2 wood screws per corner, until all 9 triangles are assembled (see image below)

diy triangle shelf insert screw

7. Stack bottom row 3 triangles right side up, 2 upside down (see image below).

building diy triangle shelf

8. Drill holes with 1/4” drill bit dead center through the triangles to connect them.
a. Not on the outside wall or on the bottom only where the triangles connect, to
hold them in place so they do not fall over when stacked.
9. Install 1/4” bolts, nuts, and washers.

bolt nut washer

10. Stack 2 triangles right side up and 1 upside down in center, on top of the bottom 5 triangles (see image below).

build stack diy triangle shelf

11. Repeat step 8. (But do drill through the bottom connecting triangles)
12. Stack final triangle on top, drill hole in the bottom and bolt

DIY Triangle shelf finished
DIY Triangle display shelf styled
